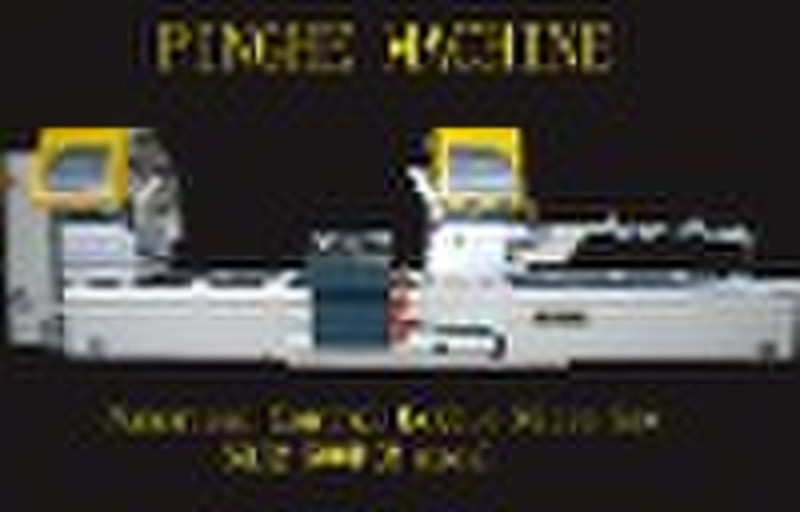

CNC Double Mitre Saw for window machine

CNC Double Mitre SawSQJ2 500F for window machine Forsawing sorts of aluminum profiles for doors windows and curtain walls by cutting at any angles between 22.5 degree to 135 degree. High quality servo motors are adopted. LCD touching display screen for operating control, through which the cutting lengths and angles are inputted. The automatic positioning for profiles length and angle is available. Saw straight outgoing mode, connected parallelly with hydro pneumatic control system, so as to ensure the feeding stability of the saw blades at stepless speed. The two sets of clamping cylinders clamp the profiles from two different directions horizontally and vertically, that makes the clamps more reliable. Attached holding rack makes clamping easier. Automatic feeding and cutting, Cutting length: 370mm to 4600mm 22.5 to 135 degree Profiles adaptable 140mm to 260mm width x height. Blade size: 500 x 4 x 30. Power of main motors: 2.2kw x 2. Rotational speed of spindle: 2800 rpm. Pneumatic working pressure: 0.5 to 0.8 MPa. Air consumption: 0.2 cubic m per min. Dimensions: 6000 x 1750 x 1700mm. Weight: 1500 kg. Repetition on length: plus minus 0.1mm. Repetition on angle: plus minus 5 degree. Verticality of cutting surface :0.1mm 100x100mm section. Planeness of cutting surface: 0.1mm 100x100mm section. Roughness of cutting surface: Ra12.5 um
